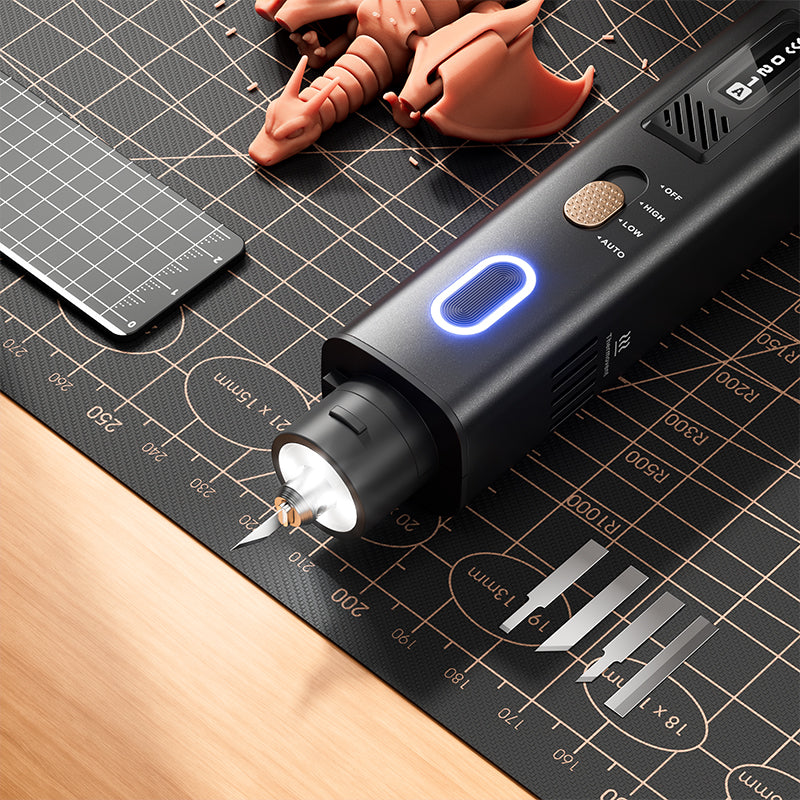

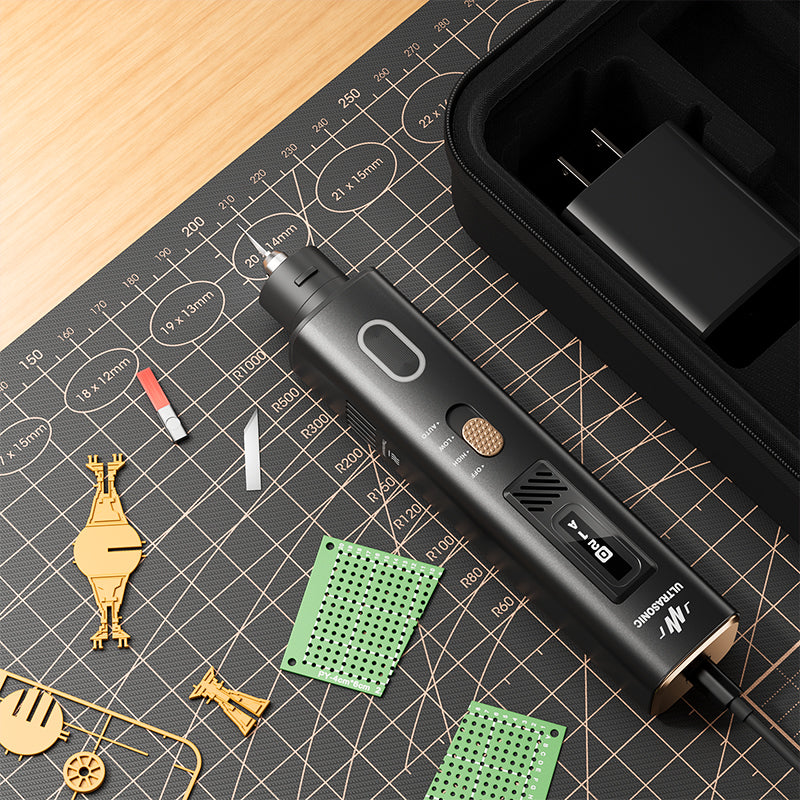

2 In 1 Powerful Ultrasonic Cutter & Polisher
When it comes to precise cutting, grinding, and polishing, having the right tool can make all the difference. Whether you're a 3D printing enthusiast, a jeweler, or a craftsman working with hard materials, the 2-in-1 Powerful Ultrasonic Cutter & Polisher is designed to handle a variety of materials with ease. From PLA, ABS, and Resin to hard plastics, metals, and gemstones, this advanced tool delivers smooth, clean cuts with minimal distortion and offers fast, efficient polishing for small areas.
Our 2-in-1 Powerful Ultrasonic Cutter and Polisher supports precise cutting, grinding, and polishing.
- Cutting Thickness: 1 - 12mm
- Cutting Speed: Up to 60mm per second
- Cutting Quality: Produces smooth cuts with minimal melting or distortion.
For harder materials such as hard plastics, metals, gemstones, jewellery, shells and hardwoods:
- Sanding Speed: Fast and efficient, with results you can see.
The ultrasonic cutter is fast and effective for polishing small areas. However, due to the small contact area of the polishing stick, it is not ideal for large area polishing where high precision is required.

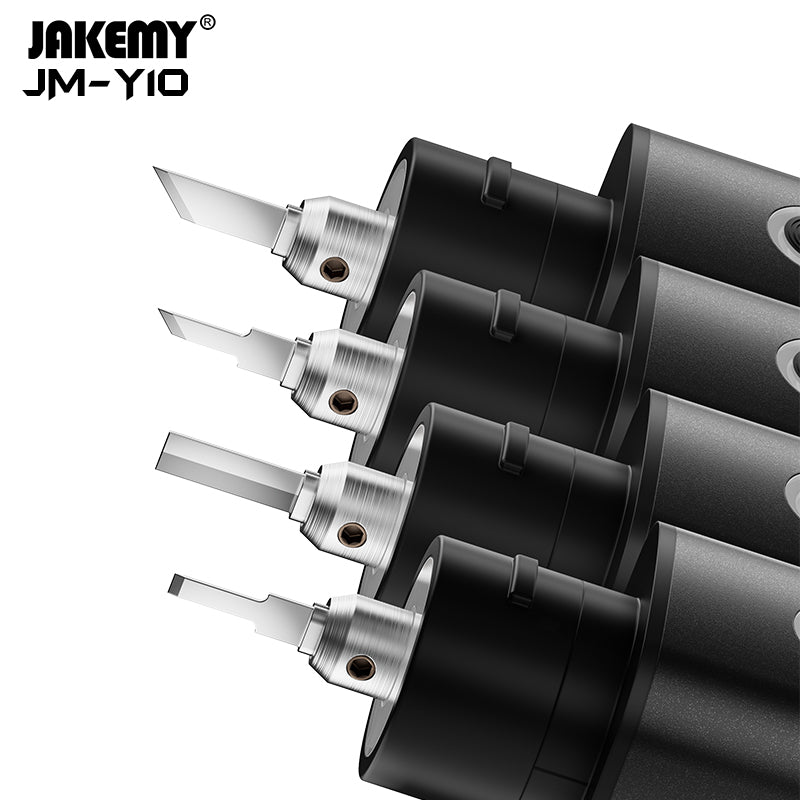

5 Types of Blades
Our current range of five blade types is designed to cover almost all daily cutting requirements. Each type of blade gives different cutting results, depending on its design and purpose. Similarly, the cutting speed can vary significantly depending on the material being cut and its properties.
Detailed Introduction to 5 Types of Blades

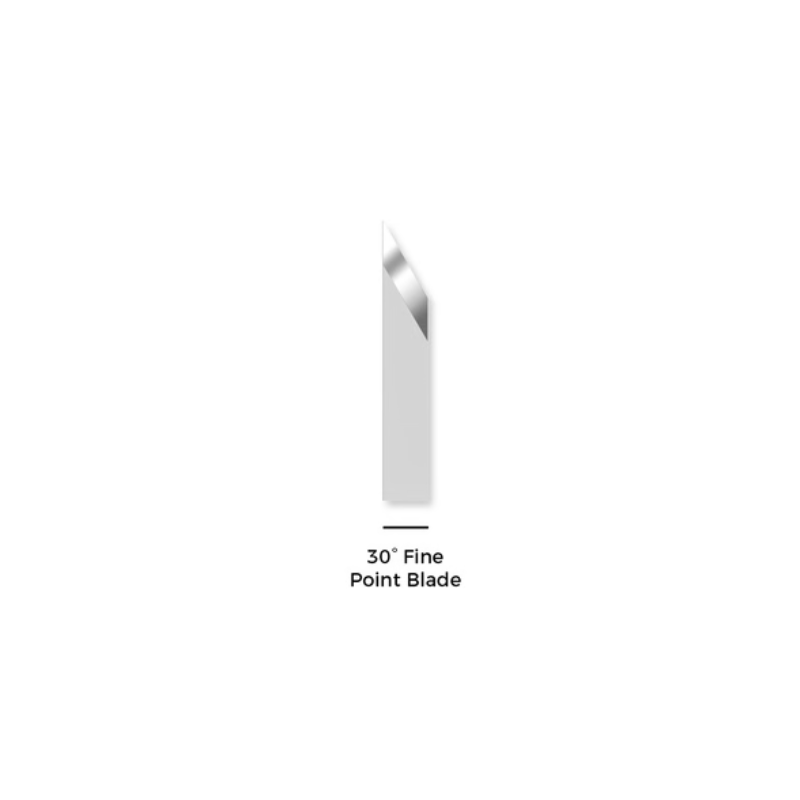

#2 Blade - 30° Fine Point Blade
- Regular Standard Blade
- Can handle virtually all daily cutting needs.
- Smaller contact surfaces for faster, but less accurate cuts.

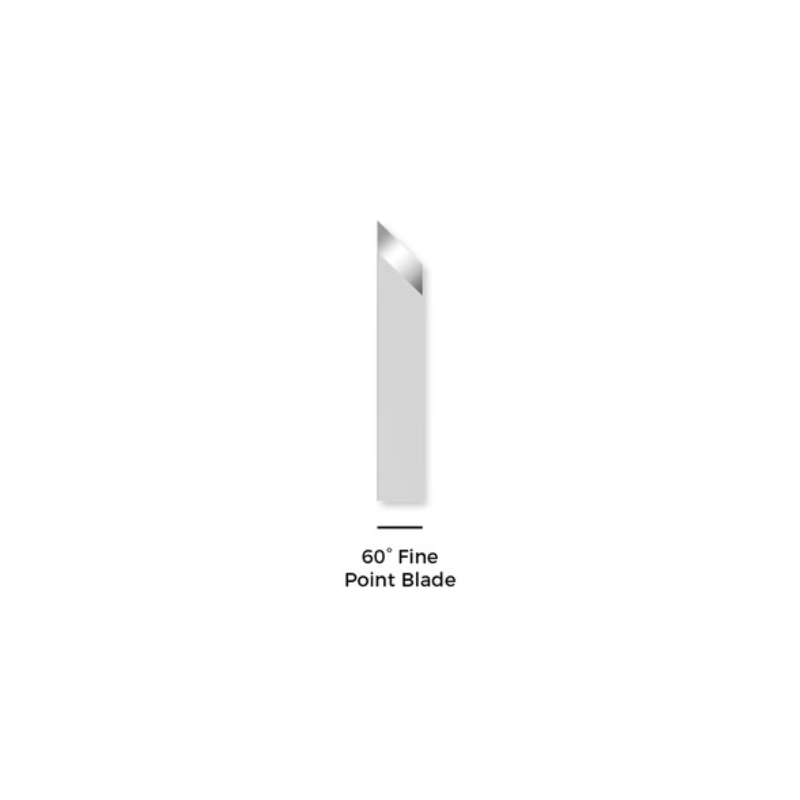

#3 Blade - 60° Fine Point Blade
- Regular Standard Blade
- Can handle virtually all daily cutting needs.
- Larger contact surface, slightly slower cutting speed, but higher accuracy and precision.

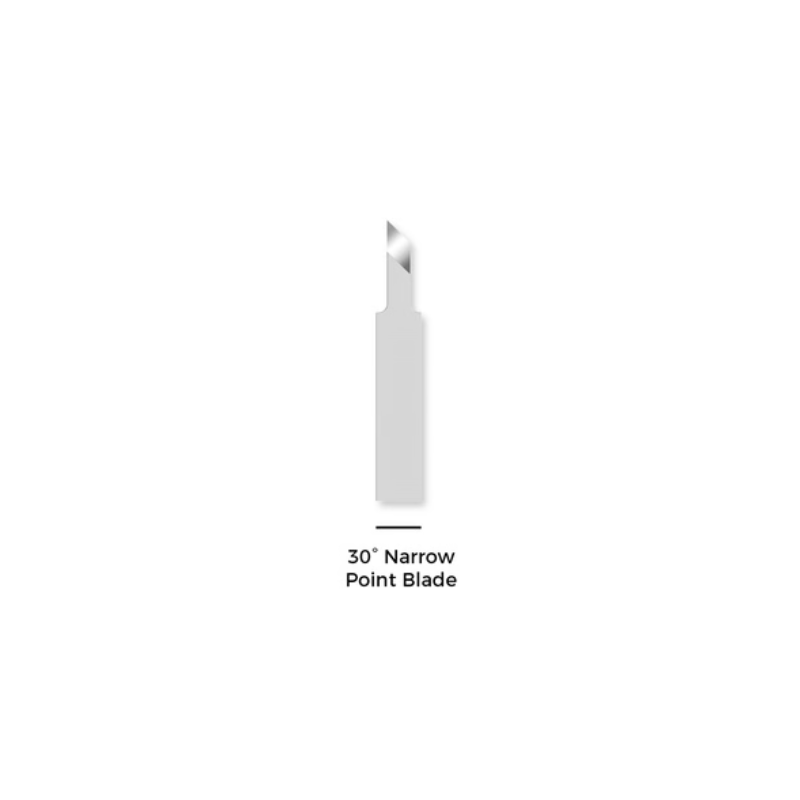

#4 Blade - 30° Narrow Point Blade
- Regular Standard Blade
- Ideal for cutting jobs where space is at a premium.

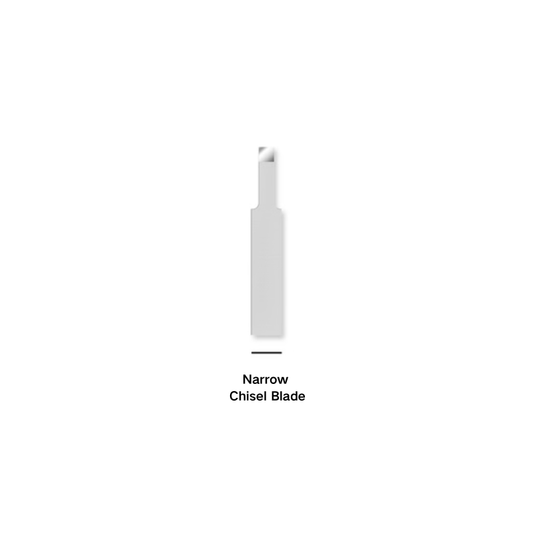

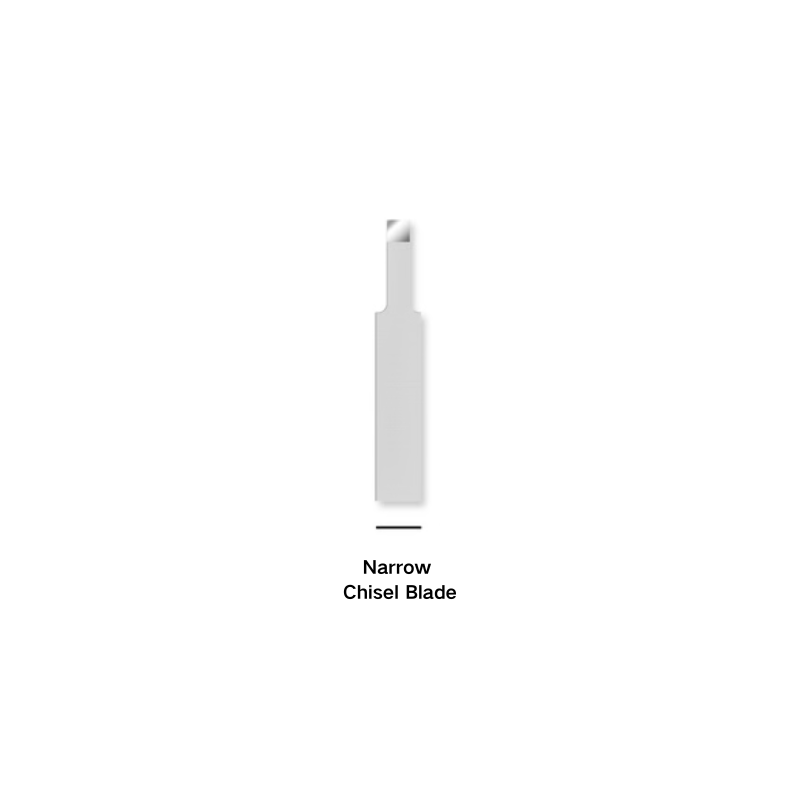

#5 Blade - Narrow Chisel Blade
- Special Shaped Blade
- Ideal for grooving of softer materials.

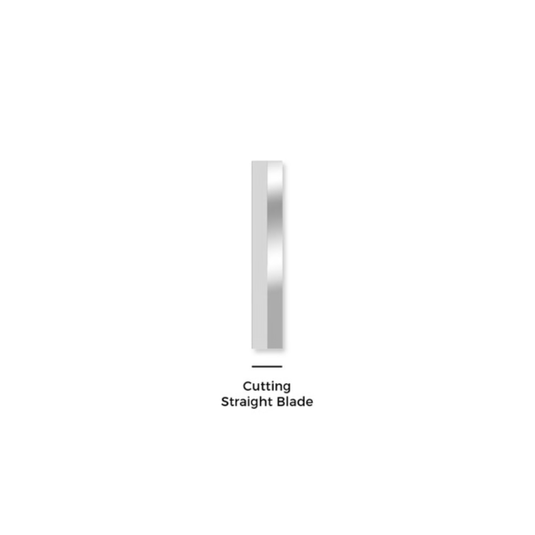

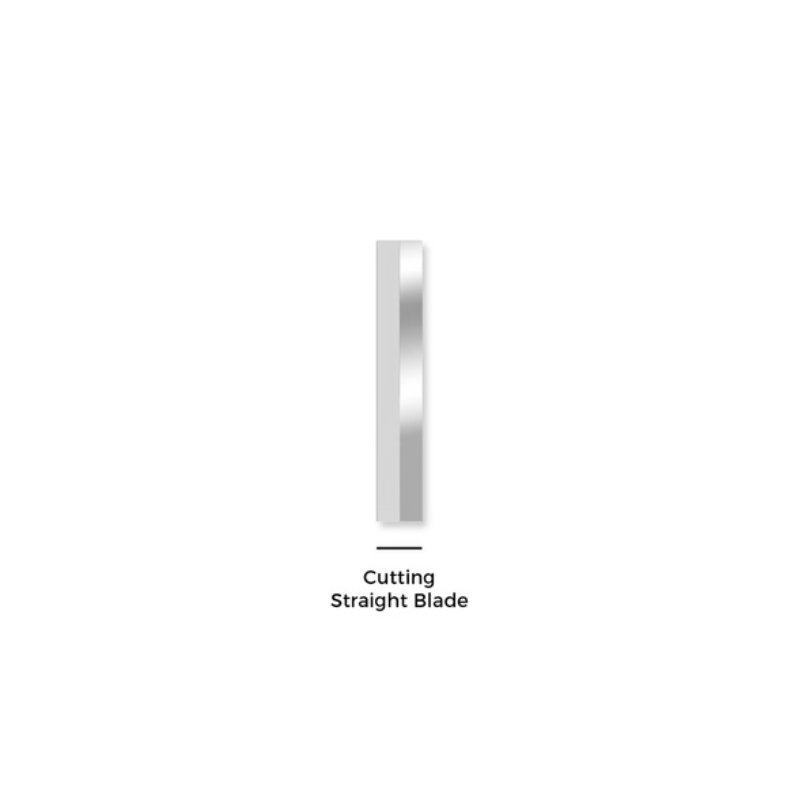

#6 Blade - Cutting Straight Blade
- Special Shaped Blade
- Ideal for large area peeling applications.

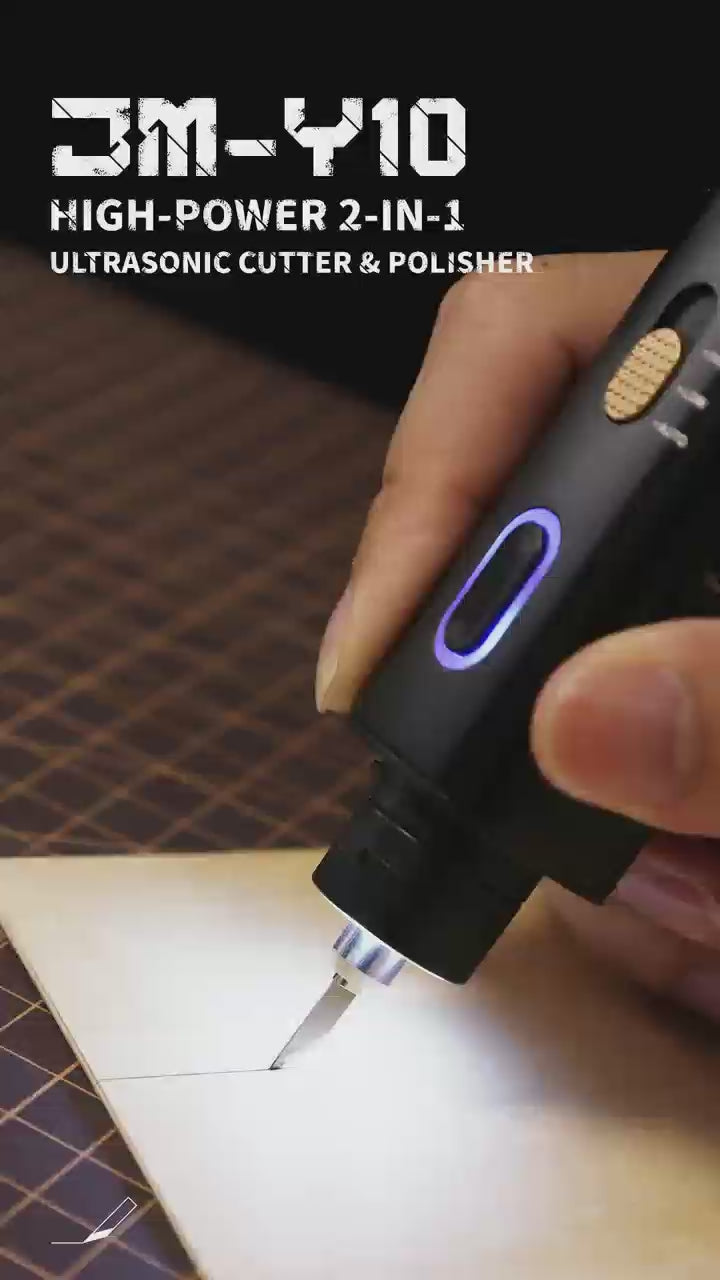

Display of the Cutting Materials and Scenes
2 Types of Grinding Sticks
Detailed Introduction to Grinding
#10 Blade - Precision Grinding Stick
- #600 mesh, it is suitable for grinding hard objects.
- Common materials such as coins, metal, shells, ceramics, jade, acrylic, plaster, circuit boards, resin, ABS, etc.
- When grinding softer surfaces such as ABS plastic, try not to apply downward pressure or you will over grind!
Detailed Introduction to Polishing
#11 Blade - Precision Polishing Stick
- #800 mesh, it is suitable for polishing hard objects.
- Common materials such as coins, metal, shells, ceramics, jade, acrylic, plaster, circuit boards, resin, ABS, etc.
Display of the Grinding and Polishing
Perfect for Any Creative or Professional Application
From fine-tuned 3D model finishing to jewelry making and intricate metalwork, this tool is a game-changer. Its ultrasonic technology ensures minimal heat buildup, reducing melting and deformation, while the grinding feature enhances the final touch on harder materials.
Conclusion: Elevate Your Craftsmanship with Ease
Whether you're cutting, shaping, or refining, the 2-in-1 Ultrasonic Cutter & Polisher offers the precision and efficiency you need. No more struggling with rough edges or inaccurate cuts—this tool ensures every detail is flawless and professional. Upgrade your workspace today and experience the power of precision cutting and polishing like never before!
Performance Specifications
-
Vibration Frequency: 40 kHz
-
Input Voltage: DC 12V 2.5A / 15V 2A
-
Power Output: 35W
-
Power Cable Length: 1.5 metres
-
Product Dimensions:
-
Main Unit: 185 × 115 × 45 mm
-
Handle: 179.5 × 33.5 × 31.5 mm
-
-
Housing Material: Metal
-
Operating Modes:
-
0 – Off
-
1 – Pulse Low
-
2 – Pulse High
-
A – Auto High
-
-
Built-in Safety Protections:
-
Overheat protection
-
Overvoltage protection
-
Overcurrent protection
(Device will pause when overheated; resumes once cooled.)
-
Recommended Grinding Applications
-
Metal: Rust and burr removal
-
Shells: Surface and contour smoothing
-
Wood: Deburring and sanding edges
-
3D Printed Parts: Cleaning support marks
Product Highlights
1. Design Philosophy

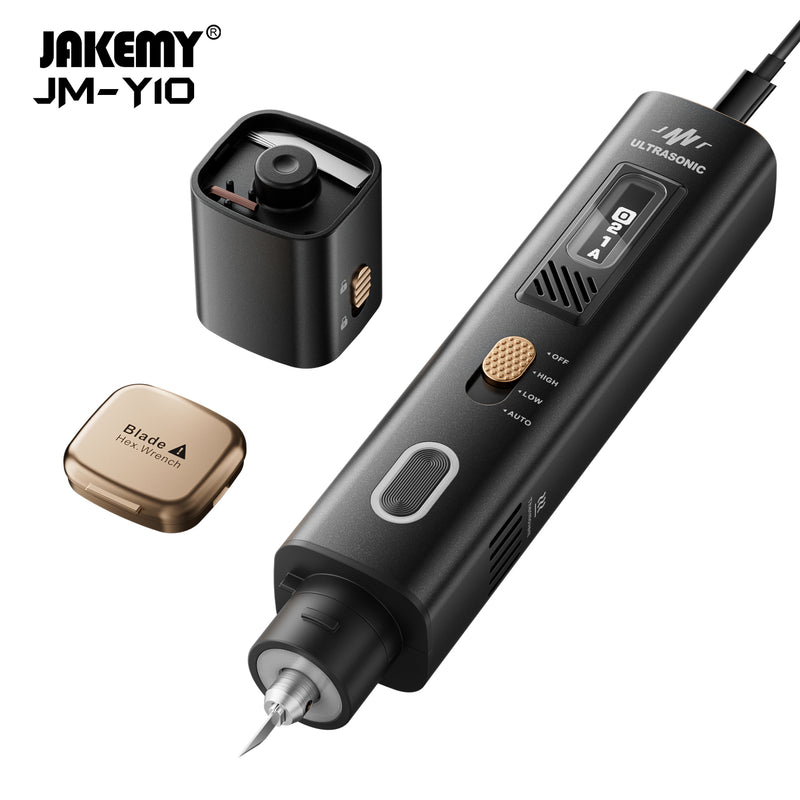

Compared to traditional manual craft knives, the JM-Y10 ultrasonic cutter delivers cleaner, faster, and more precise cuts on materials such as 3D printed parts, plastic model supports, PVC, paper, acrylic, rubber, plaster, PCB boards, wood, EVA foam, and more. It’s engineered to enhance work efficiency across a wide range of scenarios.
2. Compact & Lightweight Build
We’ve streamlined the internal structure to reduce the unit’s size and weight without compromising power. The handle is crafted from anodised aluminium alloy for durability and improved grip, while passive cooling vents efficiently disperse heat during prolonged use, reducing downtime.
3. OLED Display
A built-in OLED screen provides real-time feedback. The main display shows gear mode and button activity using animated indicators, while the secondary display reports temperature levels. This dual-screen approach helps users monitor operation and avoid overheating.
4. Integrated Lighting System
Four LED lights near the blade activate automatically in Auto mode or when the pulse button is pressed in manual modes (1 or 2). Additionally, four dual-colour LEDs on the side (2 green, 2 blue) visually indicate operation mode:
-
Green: Manual mode activated (1 or 2)
-
Blue: Auto mode (A)
-
Cyan: Overheat warning
-
Off: Device cooled and ready
5. Pulse Control Output
JM-Y10 features a dedicated pulse button. In manual modes (1 and 2), users can output energy only when pressing this button—reducing accidental injury risk and prolonging tool life. For better tactile control, we've opted for a toggle switch instead of a touch button, providing both mechanical feedback and real-time display syncing for safer operation.
6. Precision Blades
While most cutters use generic 25mm dual-edge blades, we’ve custom-designed a 22mm, 30° single-tip flat-bottom blade that delivers better efficiency and cutting results.

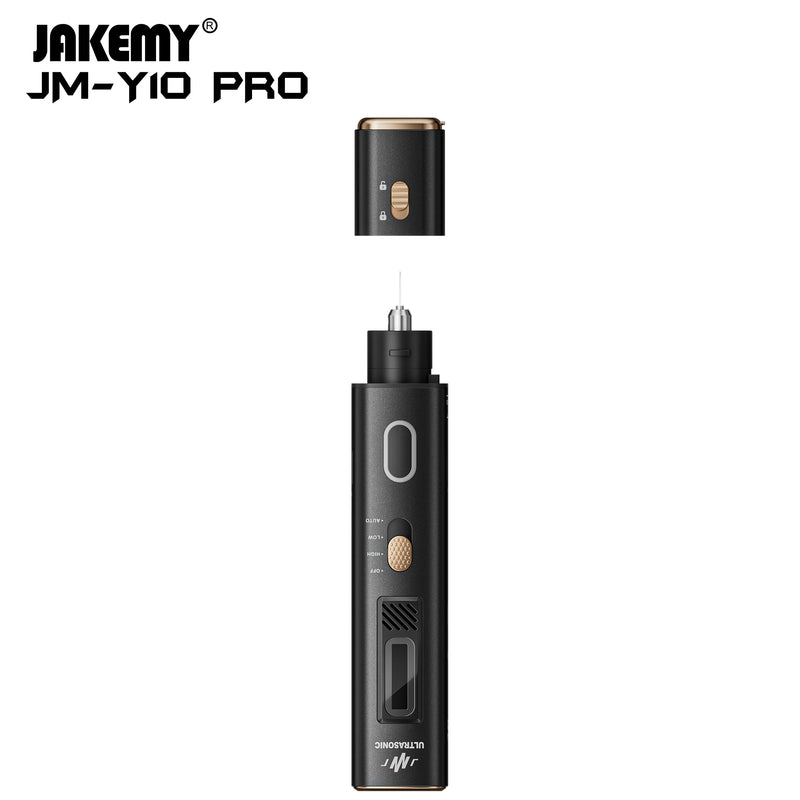

7. Child-Safe Lock
A built-in child-safety switch on the blade guard prevents accidental injuries during handling or storage.
Grinding Capability
Includes a 25mm red oilstone stick and dedicated collet.
Tested on:
-
3D Prints: Quickly removes support marks without damaging the model
-
Metal & Shells: Polishes complex textures and curves effectively
Tech Advantage
-
Auto Frequency Tracking: Adjusts output automatically for stable power delivery and enhanced cutting/grinding force
-
Ultrasonic Grinding: Greatly improves grinding speed and surface finish compared to traditional hand sanding
-
Proprietary Collet Material: High-resilience composite material reduces heat from the transducer and maintains consistent vibration output during extended use
-
Enhanced Transducer Design: Titanium alloy horn with dual-core ceramic for improved efficiency and reliability
