[W09] Mechanic W09 1100A Handheld Miniature Faraday Capacitor Spot Welder

Precio regular $195.00 AUD
Precio de venta $195.00 AUD Precio regular
Rebaja Vendido
Precio unitario
/por
Impuesto incluido. envío calculado al finalizar la compra.
Texto previo al pedido

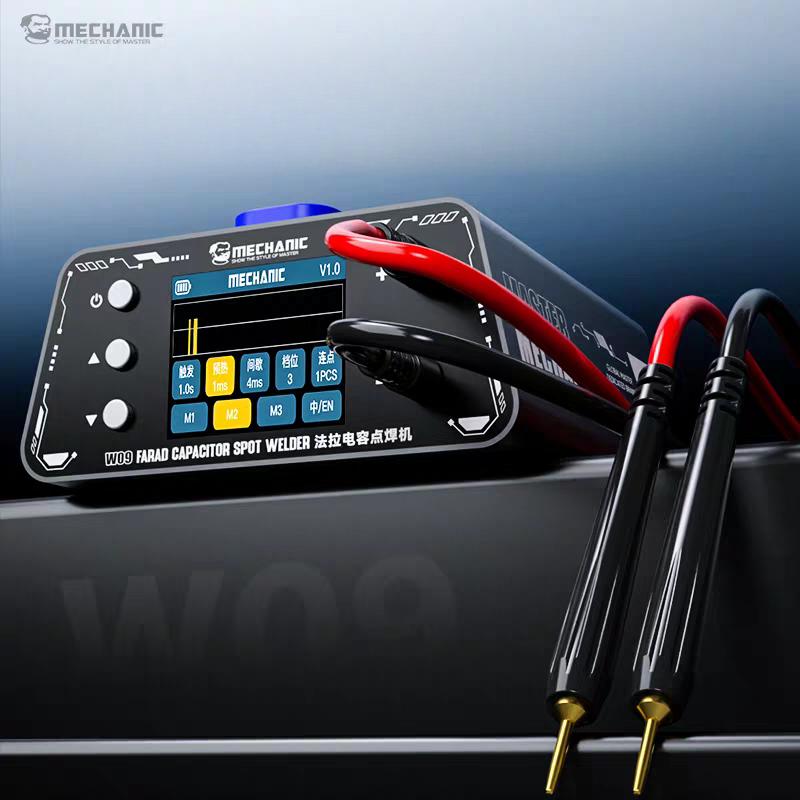

The MECHANIC W09 is a high-power, portable Farad Capacitor Spot Welder specifically designed for precision electronic repairs, such as mobile phone battery cell transplantation and battery pack assembly. Unlike battery-powered welders, it uses supercapacitors to store energy, allowing for stable, high-current pulses without the heat degradation typical of standard batteries.



Key Specifications
Power Output:

Delivers a maximum welding power of 5500W with a peak current of 1100A.
Welding Capacity: Capable of welding nickel strips with thicknesses ranging from 0.1mm to 0.4mm.


Dual-Pulse Technology: Supports a "preheating + interval + main pulse" sequence to improve weld accuracy and reduce the risk of burning through delicate components.

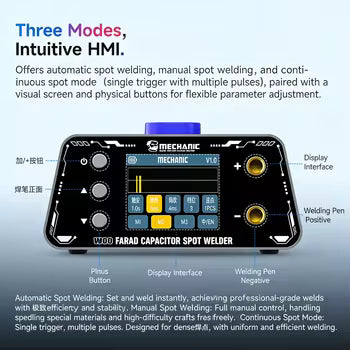

Operating Modes: Features three distinct modes—Automatic, Manual, and Continuous—to suit different repair scenarios



Design & Features

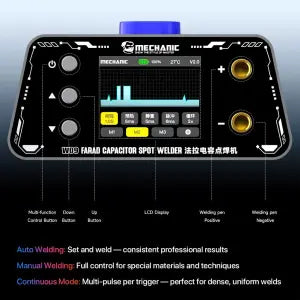

Digital Display: Equipped with an LPS LCD screen that provides real-time monitoring of welding status and parameters.
Memory Presets: Includes three memory channels (M1, M2, M3) for saving frequently used settings.
Integrated Solder Pen: Uses high-conductivity copper pens for efficient energy transfer and stable weld points.
Portability: Designed for benchtop or mobile use, it is compact and features a durable build suitable for professional repair labs
