24V 1A PoE Injector Power Adapter – 24W Ethernet Power Supply for IP Cameras, Wireless AP & Network Bridges
Product Description
The 24V 1A PoE Injector Power Adapter provides a convenient and cost-effective solution for supplying power and network connectivity to compatible Power over Ethernet (PoE) devices through a single Ethernet cable.
With a 24W maximum power output, this compact PoE injector is ideal for compatible IP security cameras, wireless access points, wireless bridges, and other 24V passive PoE networking equipment.
Featuring separate LAN and PoE Ethernet ports, it combines network data and DC power into one cable, reducing wiring requirements and simplifying installation.
Key Features
24V 1A Power Output
Delivers a stable 24V DC output with a maximum current of 1A, providing up to 24W of power for compatible networking devices.
Power & Data Over One Cable
Combines Ethernet data and power through a single network cable, eliminating the need for a separate power supply at the connected device.
Dual RJ45 Ethernet Ports
-
LAN Port: Connects to your router, network switch, or other Ethernet network source.
-
PoE Port: Connects to a compatible 24V passive PoE device, transmitting both power and network data.
Wide Device Compatibility
Suitable for compatible 24V passive PoE equipment, including:
-
Wireless Access Points (AP)
-
PoE IP Security Cameras
-
Wireless Network Bridges
-
Outdoor Wireless CPE Devices
-
Other compatible 24V passive PoE networking equipment
Plug & Play Installation
Simple setup without additional software or configuration. Connect the LAN cable, connect the compatible PoE device, and plug the injector into a suitable power outlet.
Compact & Durable Design
Features a space-saving black housing suitable for home, office, commercial, and network installation environments.

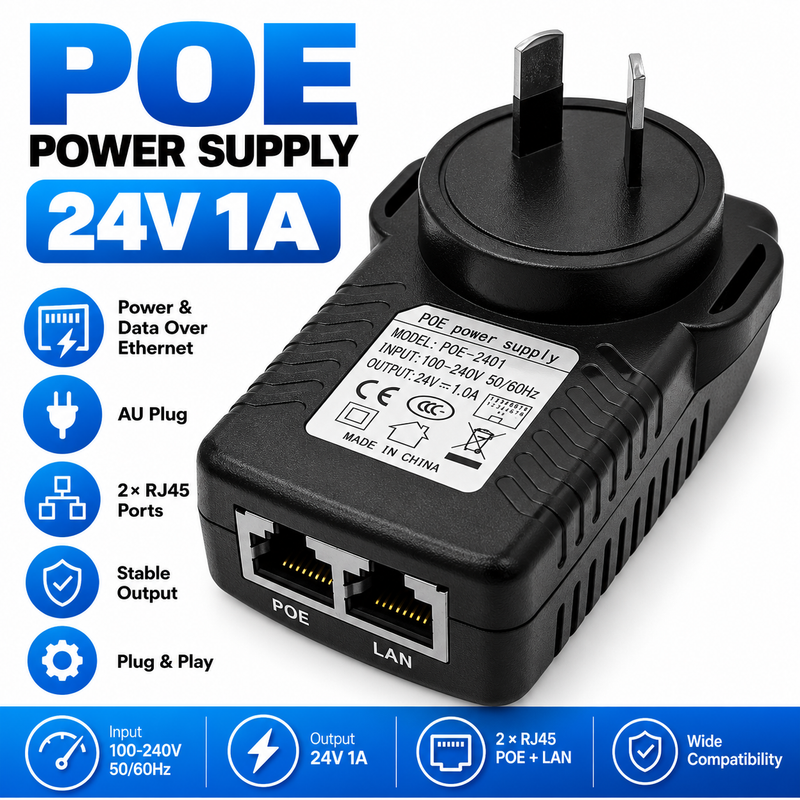

Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Passive PoE Injector Power Adapter |
| Model | POE-2401 |
| Input Voltage | AC 100–240V |
| Input Frequency | 50/60Hz |
| Output Voltage | DC 24V |
| Output Current | 1A |
| Maximum Output Power | 24W |
| Ethernet Ports | 1 × LAN, 1 × PoE |
| Connector Type | RJ45 |
| Housing Colour | Black |
| Installation | Plug & Play |
| PoE Type | 24V Passive PoE |

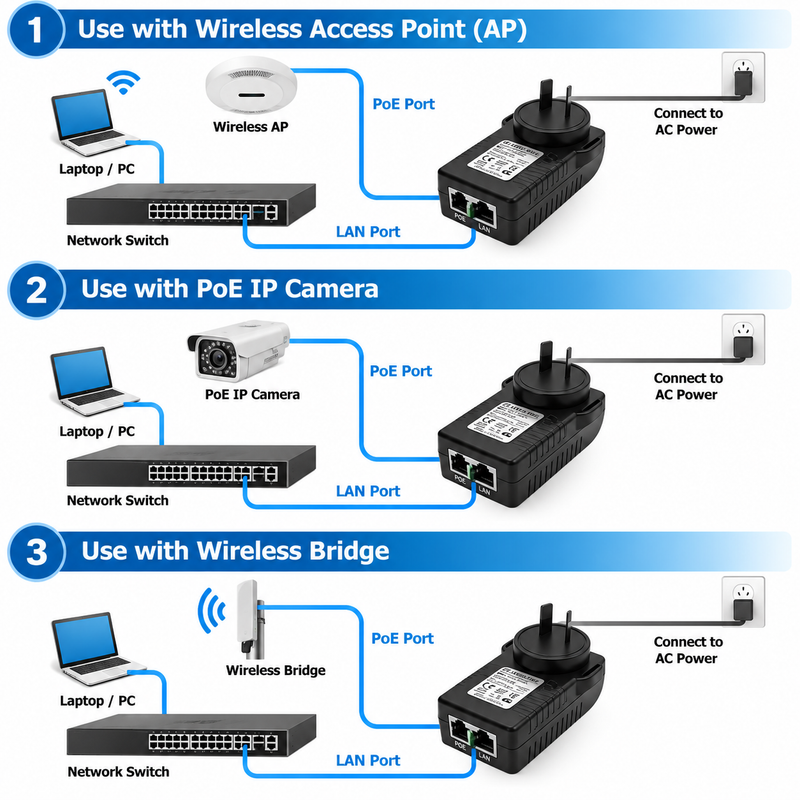

How to Connect
-
Connect an Ethernet cable from your router or network switch to the injector's LAN port.
-
Connect another Ethernet cable from the injector's PoE port to your compatible 24V passive PoE device.
-
Plug the injector into a suitable AC power outlet.
-
Your connected device can now receive power and network data through the Ethernet cable.
Package Includes
-
1 × 24V 1A PoE Injector Power Adapter
Ethernet cables and networking devices are not included.
Important Compatibility Notice
This is a 24V Passive PoE Injector, not a standard IEEE 802.3af/at PoE injector.
-
Only connect devices specifically designed to accept 24V passive PoE.
-
Not suitable for devices requiring 48V PoE or standard IEEE 802.3af/at power negotiation.
-
Check your device's voltage, power requirements, and PoE pin configuration before connecting.
-
Connecting incompatible devices may cause permanent equipment damage.
-
This product supplies power only and does not provide network switching or routing functions.
Please verify compatibility with your device before purchasing.
