[DMC-600 / DMC-600A] FNIRSI Smart Digital Burn-Proof High-Precision Current Clamp Multimeter

Fnirsi DMC-600 / DMC-600A Smart Digital Burn-Proof High-Precision Current Clamp Multimeter

Features

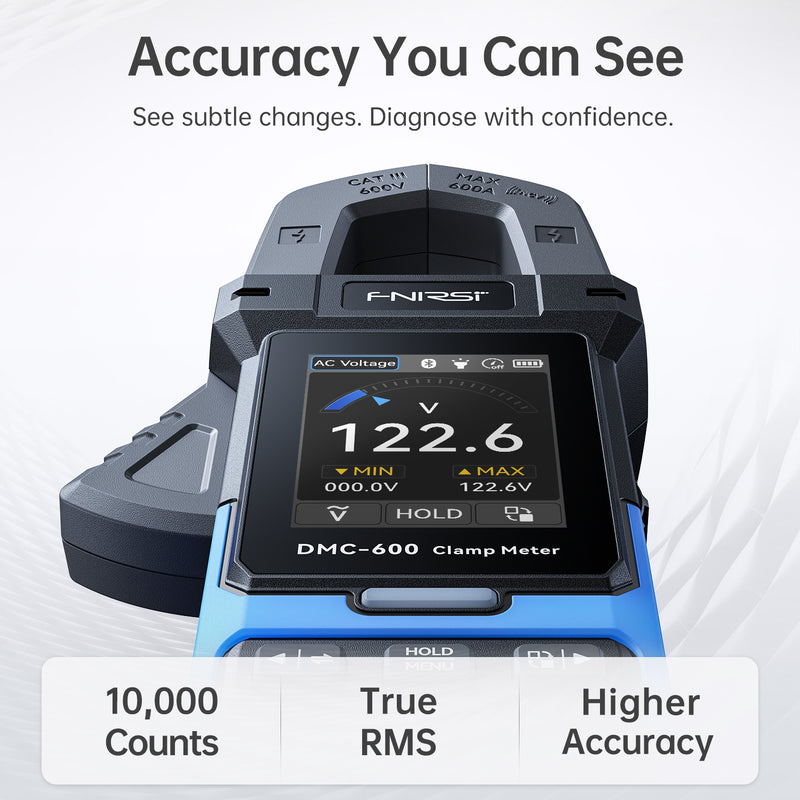

• 10,000-Count True RMS Measurement: Provides high-resolution readings for electrical testing and troubleshooting, with True RMS measurement for AC signals.

• AC/DC Current Measurement up to 600A: Measures AC and DC current from 0.01A to 600.0A, supporting electrical inspection and maintenance tasks.

• Bluetooth App Connectivity on DMC-600: The DMC-600 supports Bluetooth connection to a mobile app for remote reading, data viewing and recording. The DMC-600A does not support Bluetooth.

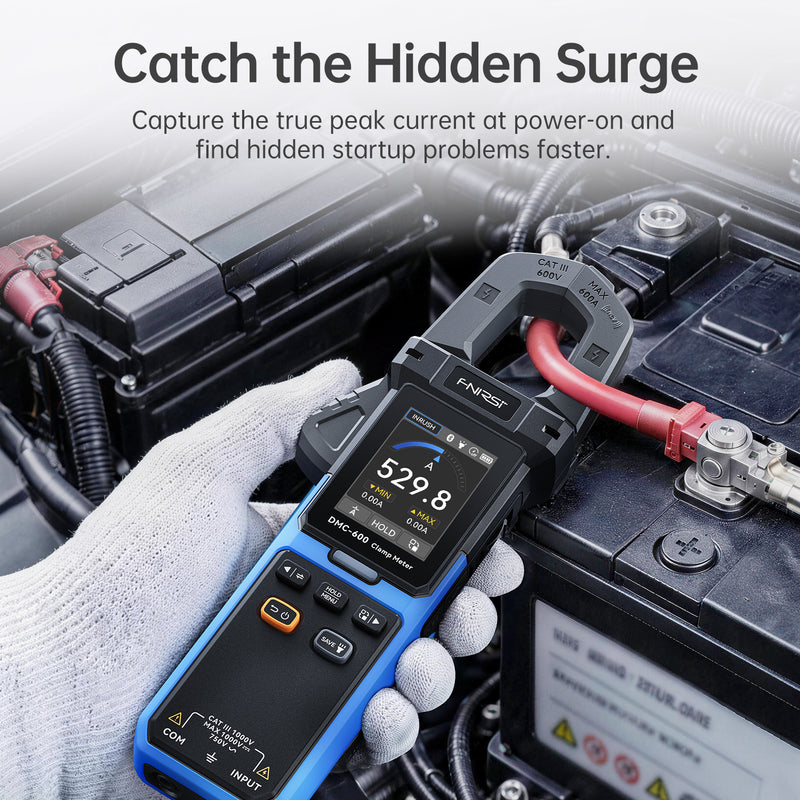

• Inrush Current Measurement: Supports inrush current testing to help check startup current when inspecting motors and other electrical equipment.

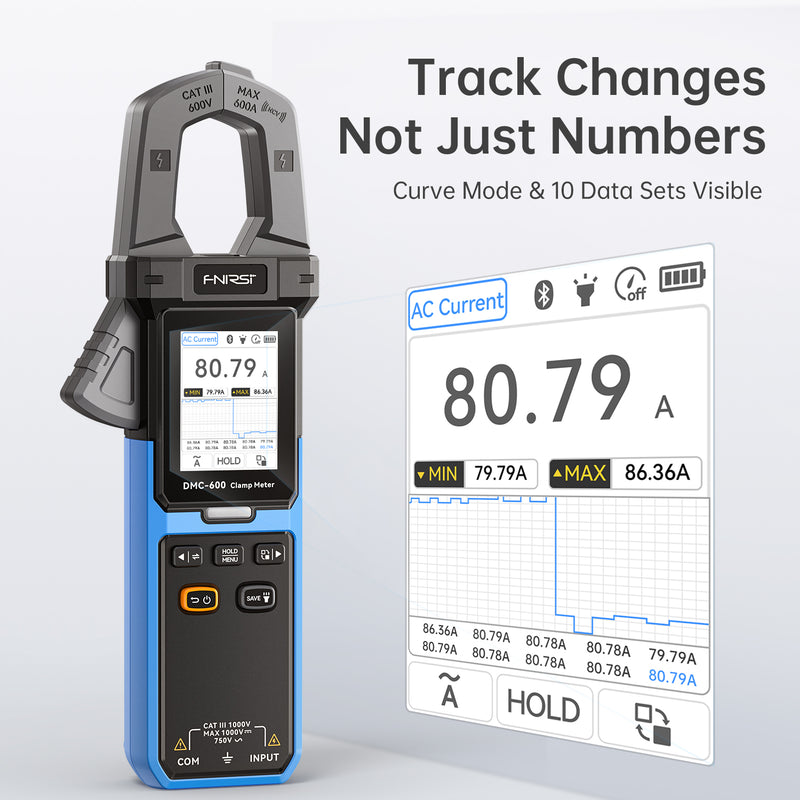

• Real-Time Waveform Display: Waveform Mode displays signal waveforms on the screen and supports viewing saved waveform records, helping users inspect changing electrical signals.

• 2.0-Inch Full-Color TFT Display: The color screen presents measurement readings and operating information for convenient viewing during electrical testing.

• Comprehensive Electrical Measurement Functions: Supports AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, continuity and diode testing for a wide range of electrical troubleshooting tasks.

• AC/DC Voltage Measurement: Measures AC voltage up to 750.0V and DC voltage up to 999.9V, supporting common electrical inspection and maintenance work.

• Resistance and Capacitance Testing: Measures resistance from 0.1Ω to 99.99MΩ and capacitance from 0.001nF to 99.99mF for component and circuit checks.

• Frequency and Temperature Measurement: Measures frequency from 0.001Hz to 9.999MHz and temperature from -55°C to 1300°C (-67°F to 2372°F).

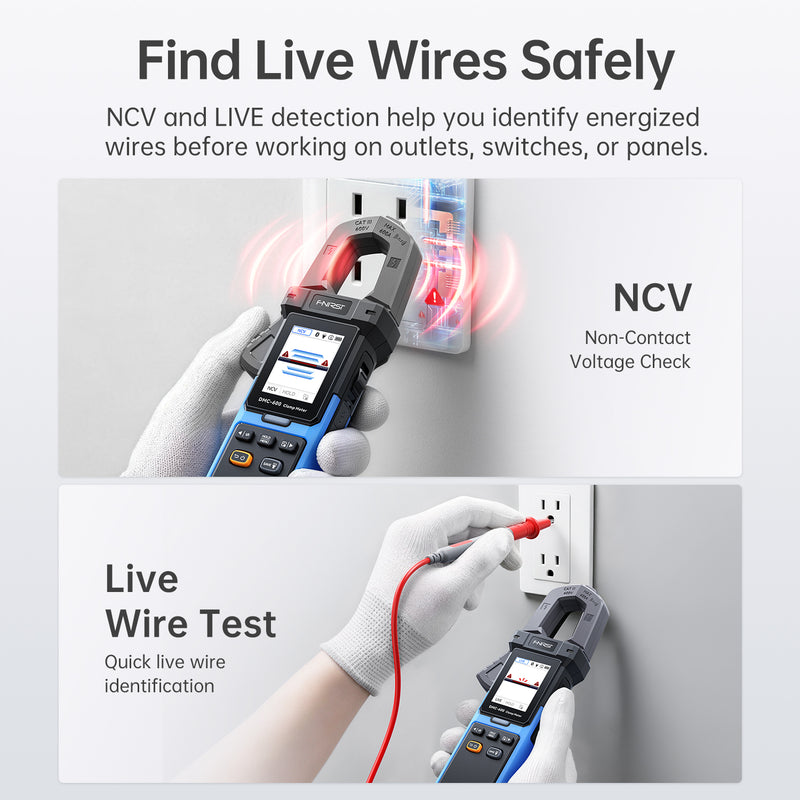

• NCV and LIVE Detection: Non-contact voltage (NCV) detection and single-probe LIVE testing help identify voltage presence during electrical inspection.

• Min/Max and Data Hold Functions: Min/Max recording and data hold help users review measurement changes and retain readings during testing.

• Continuity and Diode Testing: Continuity testing supports circuit checks, while diode mode displays the approximate forward voltage for component testing.

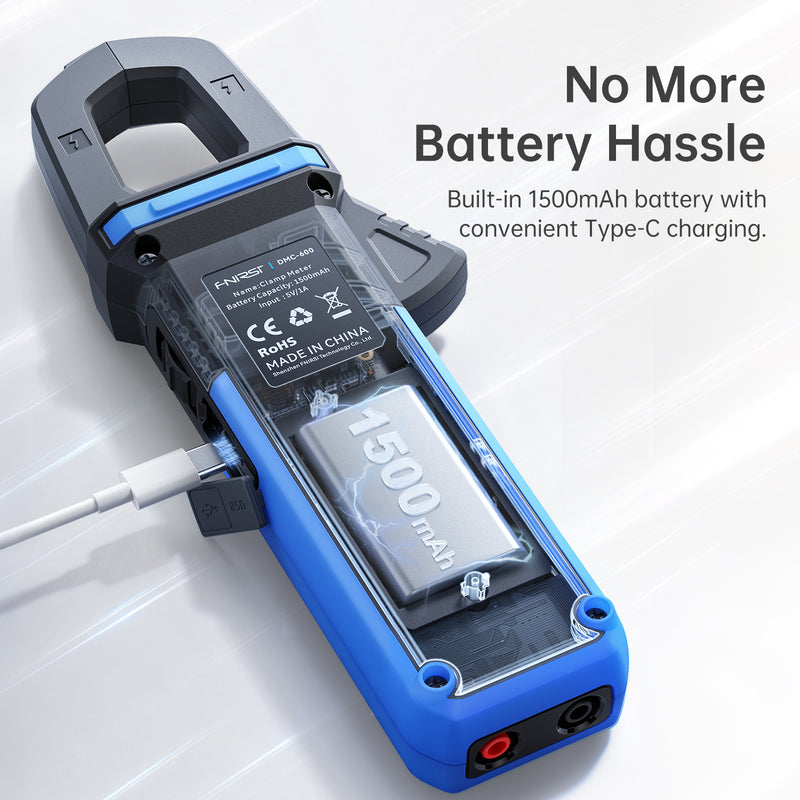

• Rechargeable Battery with Type-C Charging: The built-in 3.7V, 1500mAh lithium battery and Type-C charging interface provide rechargeable power for portable use.

• Additional Practical Functions: Includes a built-in flashlight, automatic power-off settings and firmware upgrade support through a Type-C data cable and computer.

Specifications:

• Model: DMC-600 / DMC-600A

• Display: 2.0-Inch Full-Color TFT

• Battery: 3.7V 1500mAh Rechargeable Lithium Battery

• Clamp Jaw Opening: 25mm

• Display Count: 10,000 Counts

• Measurement Type: True RMS

• Current Range: AC/DC: 0.01A~600.0A

• Voltage Range: AC: 0.001V~750V; DC: 0.001V~999.9V

• Resistance Range: 0.1Ω~99.99MΩ

• Capacitance Range: 0.001nF~99.99mF

• Frequency Range: 0.001Hz~9.999MHz

• Temperature Range: -55°C to 1300°C (-67°F to 2372°F)

• Safety Rating: CAT III 1000V

• Bluetooth: DMC-600 Only

• Measurement Functions: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Continuity, Diode, NCV, LIVE

• Additional Functions: Inrush Current, Waveform Mode, Data Hold, Min/Max, Flashlight

• Charging Interface: Type-C

• Auto Power-Off: Never / 5 / 15 / 30 Minutes

• Weight: Approx. 250g

• Firmware Upgrade: Supported

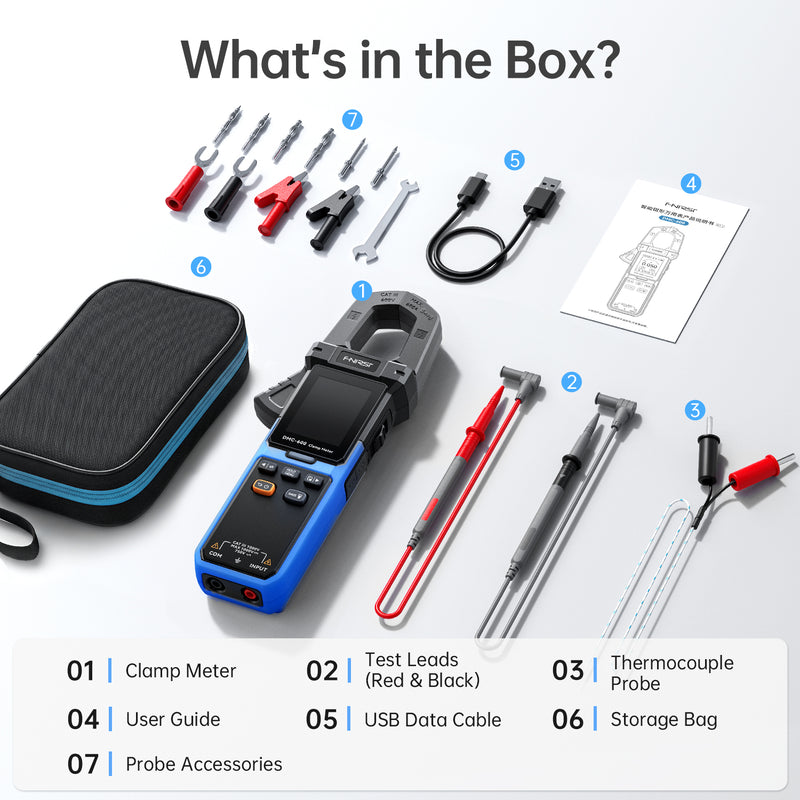

Package includes:

• 1 x Clamp Meter

• 1 x Test Leads (Red & Black)

• 1 x Thermocouple Probe

• 1 x USB Data Cable

• 1 x Probe Accessories
