[iBridge A3] QianLi Charging Port Analysis Tester with Lightning Type-C Port

QianLi iBridge A3 – Tail Plug Comprehensive Analysis Tester

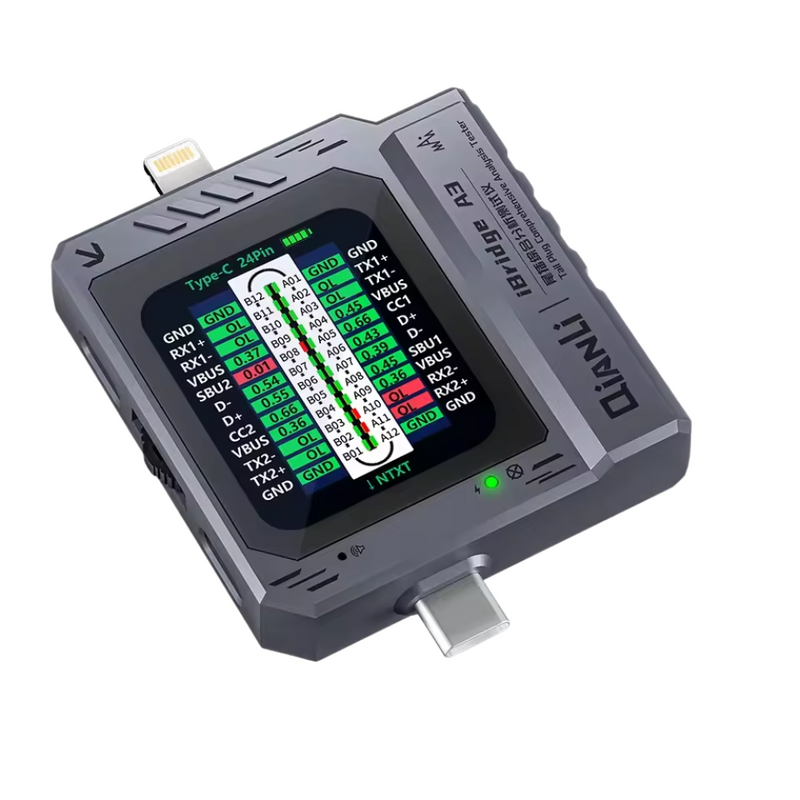

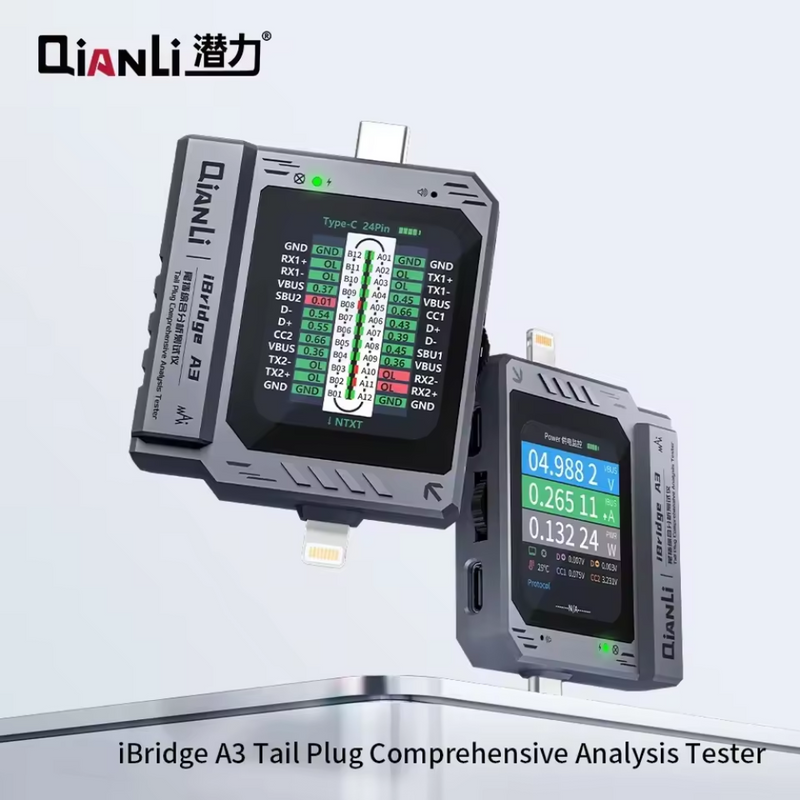

The QianLi iBridge A3 is a compact and powerful diagnostic tool designed for fast and accurate testing of Lightning and Type-C tail plug circuits. Built for repair professionals, it simplifies port testing with intelligent features and a user-friendly interface.

Key Features:

• Premium Build Quality: Equipped with a high-quality connector that remains responsive even after extensive use and repeated plug-ins.

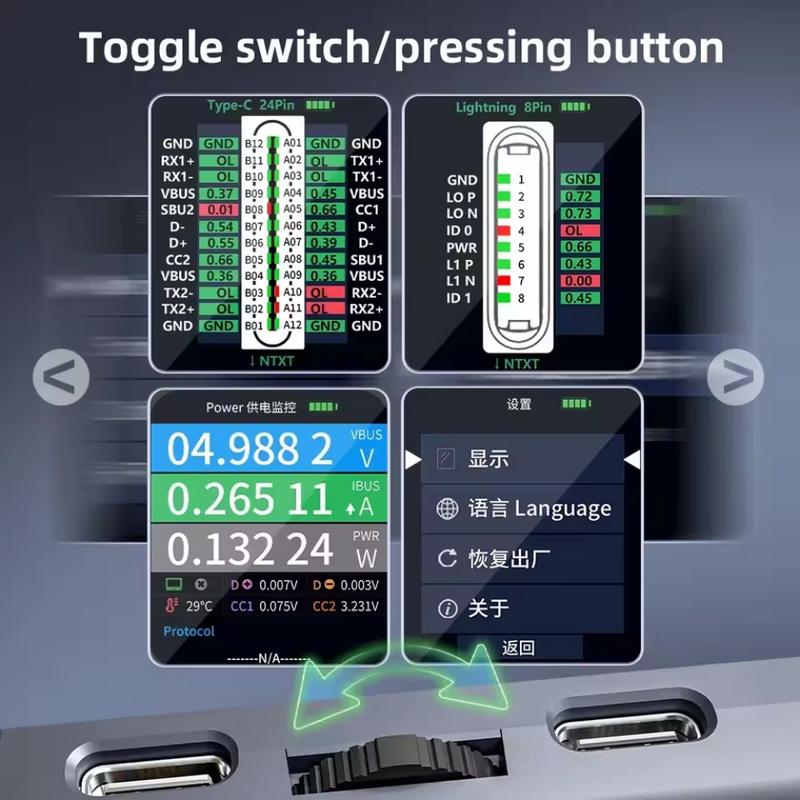

• Intuitive Control: Toggle the lever to easily switch between detection and settings interfaces. Press to confirm selections, and press and hold for 2 seconds to power on/off.

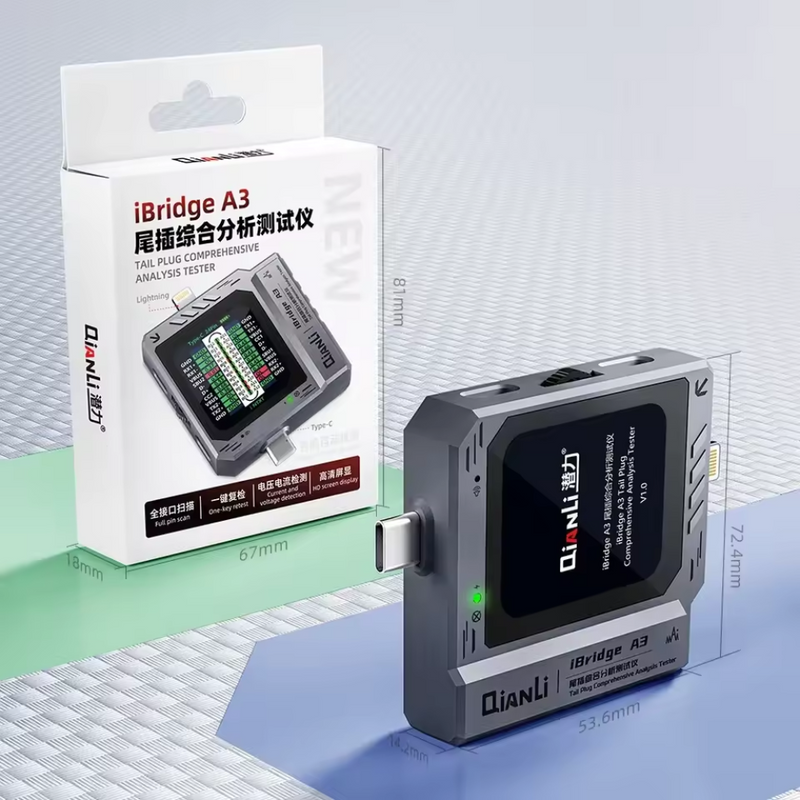

• Compact HD Display: Clear and portable screen display with a built-in rechargeable battery — no external power required for basic testing.

• Future Software Support: The tail plug charging port is designed to support PC software in future updates. The current and voltage detection port currently supports Type-C device testing only.

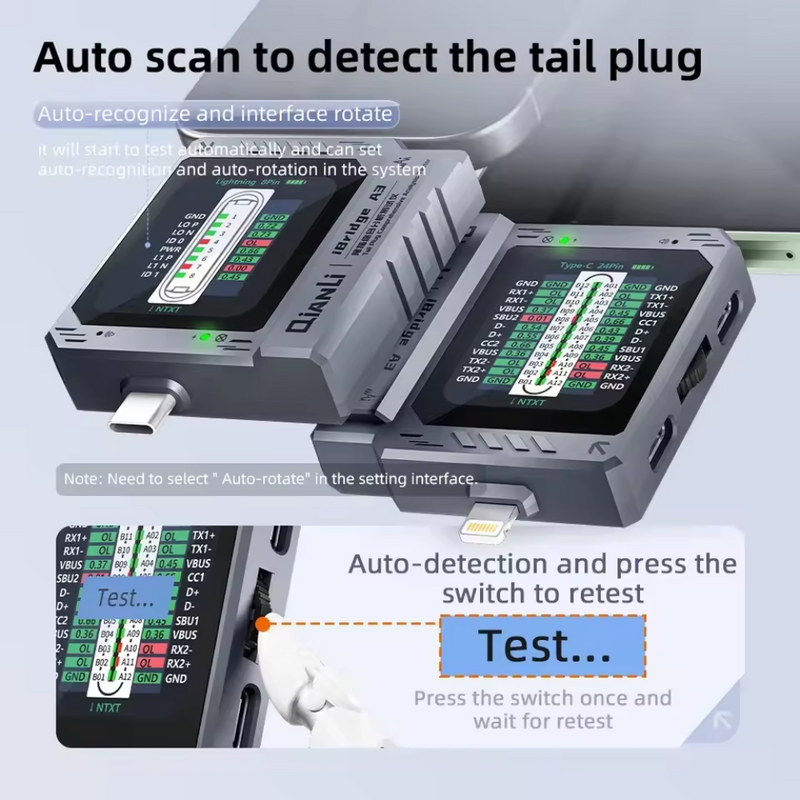

• Smart Detection System: Automatically scans and detects tail plug issues. With a single press, re-inspection is performed and charging faults are instantly locked in, reducing troubleshooting time.

• Ground Fault Protection: Effectively identifies issues with tail plug cables or charging circuits without false readings caused by grounding resistance or voltage.

• Auto Flip Detection: System supports automatic screen flip recognition for ease of use.

• Live Data Monitoring: Once connected to a device, it begins real-time detection of current, voltage, D+, D–, CC1, and CC2 lines.

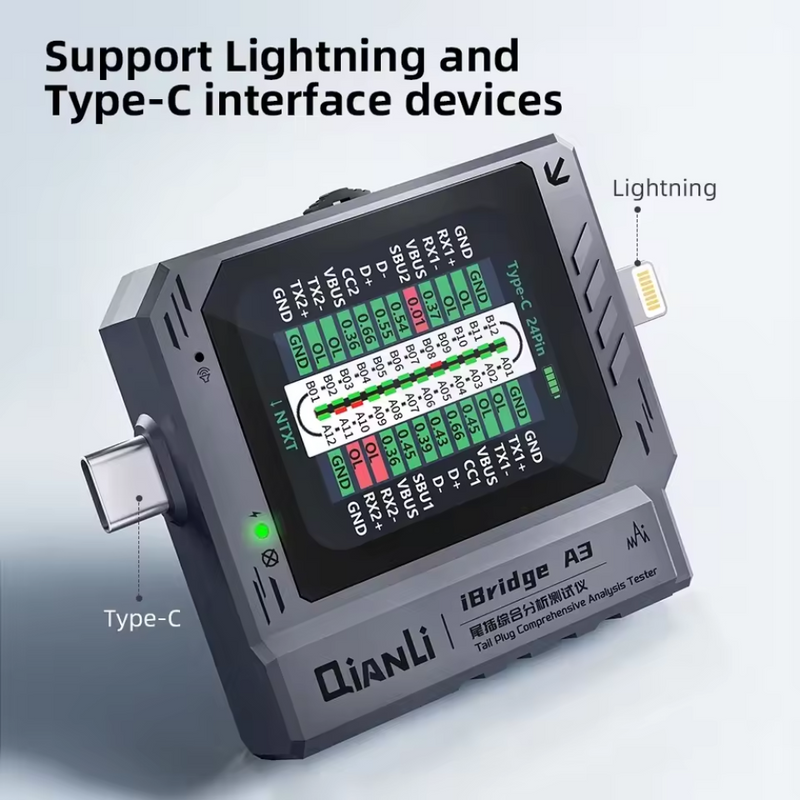

Supported Interfaces:

• Lightning

• Type-C
